AH-64 Apache helicopter model, LongBow Radar Scale 1:72 Metallic Details MDR7223

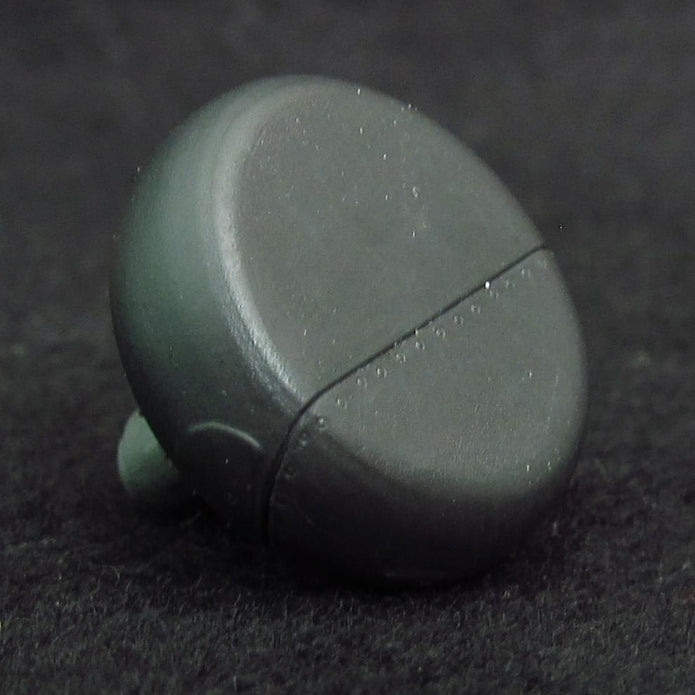

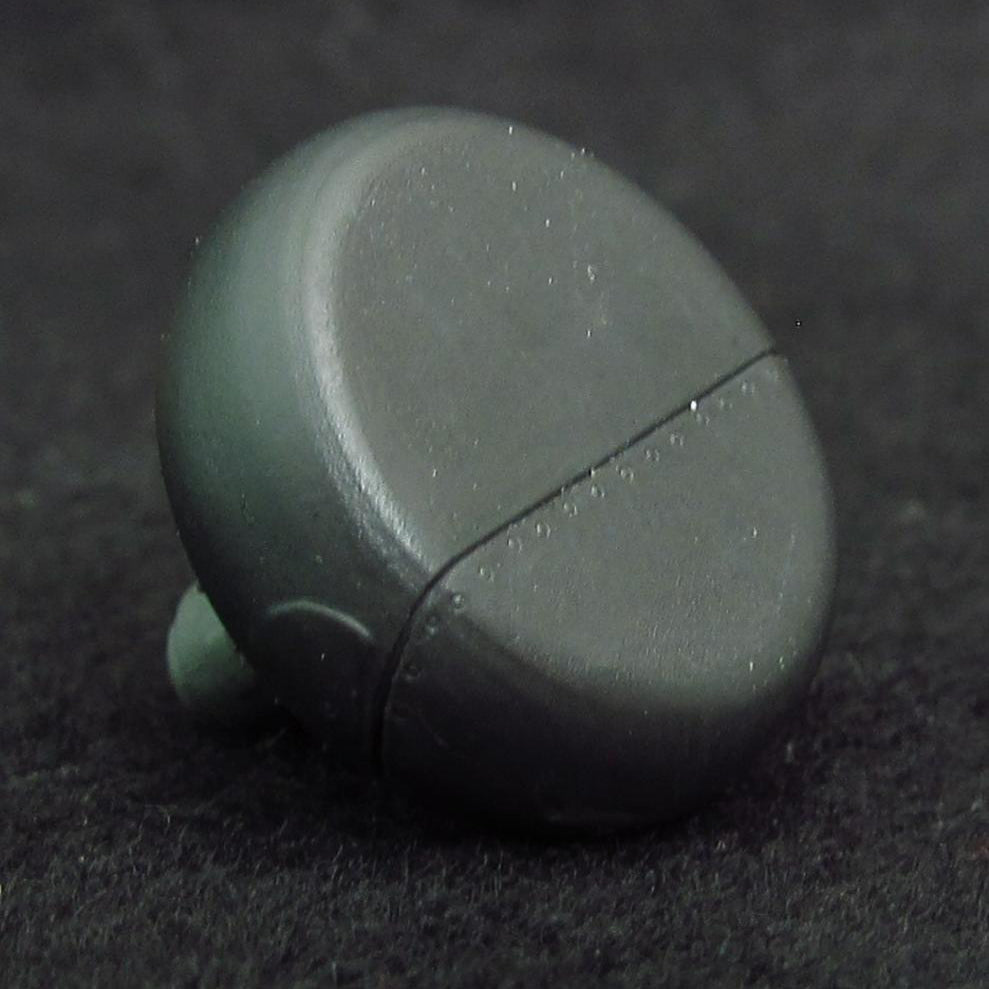

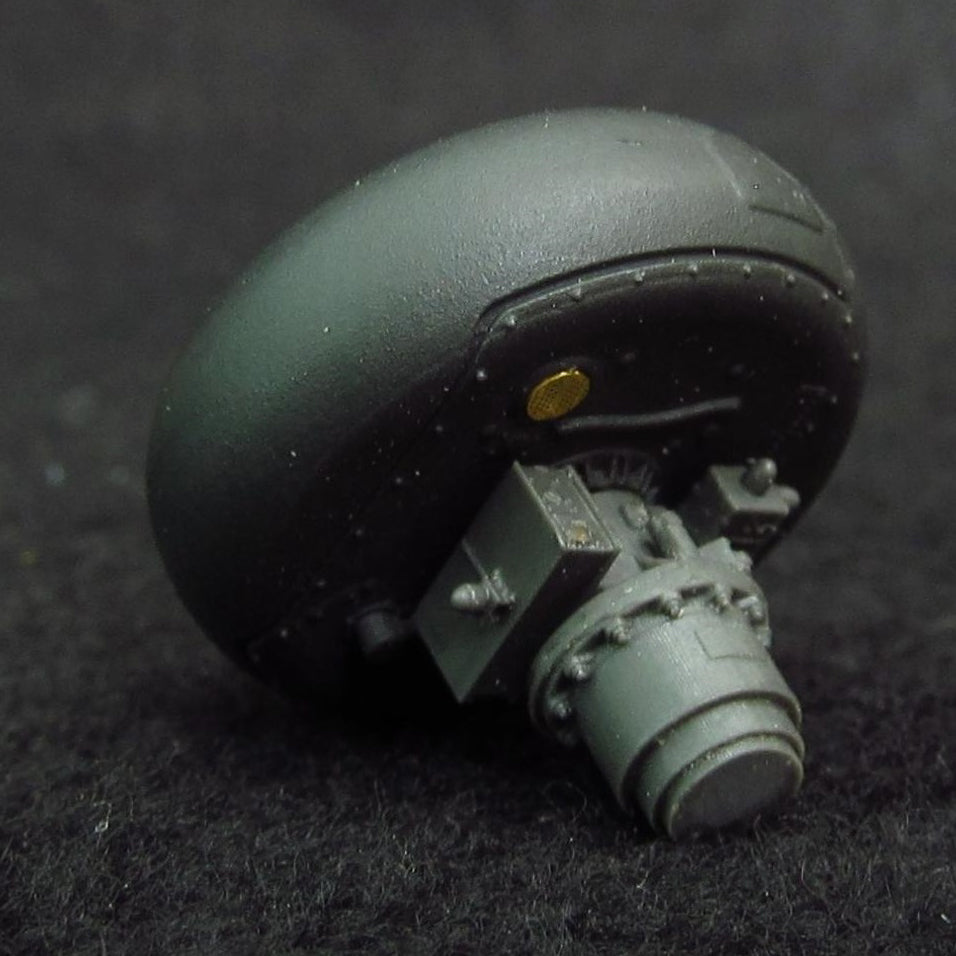

Metallic Details MDR7223 is a resin and photo-etched upgrade focused on the AH-64 Apache Longbow mast-top radar in 1/72. It covers the radar unit outline and attachment area, which is a small but visible feature on a finished helicopter model.

The set includes 4 resin parts and a photo-etched fret, intended to replace or refine kit-provided radar details.

The Longbow radar sits above the rotor system, so changes to its shape and mounting can affect the overall profile of the model when viewed from the front and above. This set is also listed as a component of the MDR7220 detailing set (variant-dependent).

For modelers: center alignment is an important step—dry-fit the radar assembly with the rotor mast/head parts in place and check it from multiple angles before using adhesive. Add photo-etched parts after the main resin pieces are positioned, then prime to confirm edges and seams before final paint.

Product specifications

• Subject: AH-64 Apache Longbow radar (mast-top radar)
• Variant / Family: AH-64 Apache Longbow (Longbow radar set; also part of MDR7220)
• Scale: 1/72 (also written as 1:72)
• Product type: Detail set (resin, photo-etched)
• Type of equipment: Helicopter
• Recommended kit: for various compatible 1/72 AH-64 Apache Longbow helicopter model kits (kit-dependent)
• Manufacturer: Metallic Details
• Country of manufacture: Ukraine
• Material: Photo-etched metal, resin
• SKU: MDR7223

This item is part of Metallic Details and belongs to Aftermarket and Exterior Details. For matching projects, browse 1/72 helicopter model kits and all Helicopter Model Kits.

FAQ

Is this set made for one specific kit brand?

No. It is listed as Universal, so fit is kit-dependent. Dry-fit the radar assembly to your kit’s mast and rotor head parts before final installation.

When should I add the photo-etched parts?

Add them after the main resin pieces are positioned and aligned. This reduces the chance of bending thin parts while you adjust the radar assembly.

How do I keep the radar centered?

Check alignment with the rotor mast/head temporarily installed and view the model from the front and above. Small shims or a simple jig can help hold the part square while the adhesive sets.
